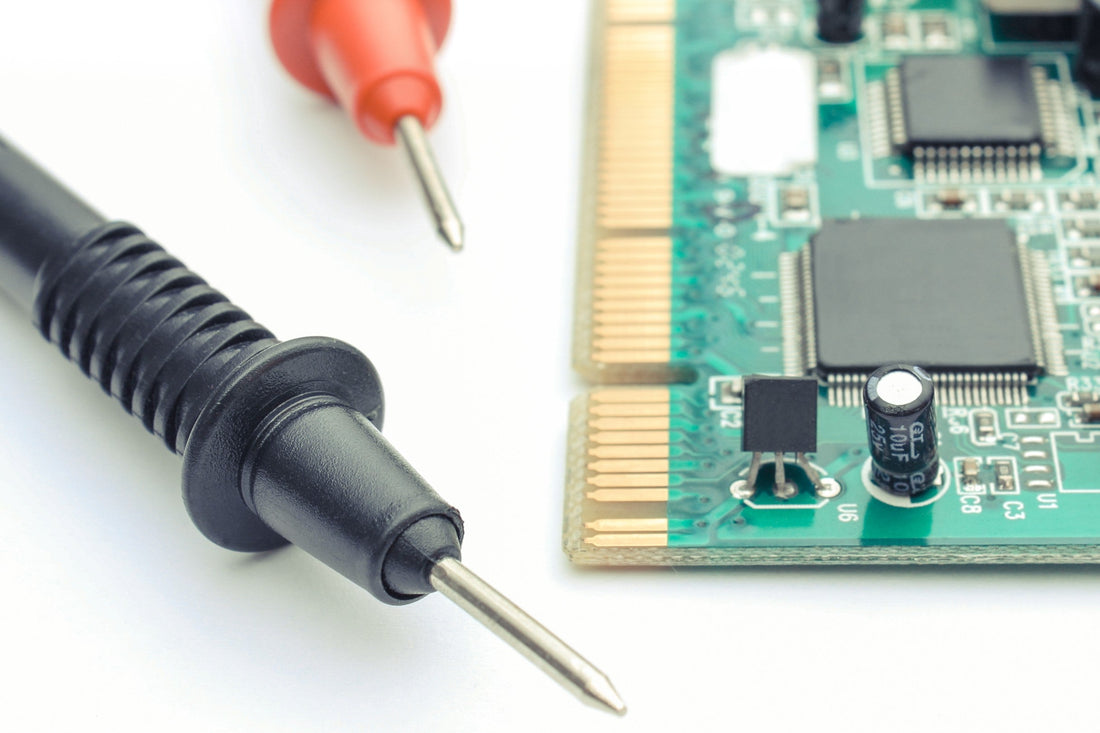

5 Common Causes of ICT Probe Failure and How to Improve Test Fixture Reliability

An ICT probe is one of the most critical components in an in-circuit testing system. When a probe fails to make reliable electrical contact, manufacturers may experience false test failures, unnecessary retesting, reduced throughput, and increased maintenance costs. Common causes of ICT probe failure include contamination, mechanical wear, misalignment, and fixture-related issues that increase contact resistance and affect measurement accuracy.

Why ICT Probe Failure Can Create Costly Testing Problems

Common Signs of Probe Failure

ICT probe failures rarely happen suddenly. More often, performance gradually deteriorates as contact resistance increases or mechanical wear affects movement. Typical warning signs include:

• Inconsistent test readings
• Intermittent electrical contact
• Increased false failures
• Higher retest rates
• Unexpected fixture downtime

These symptoms can easily be mistaken for PCB defects when the actual issue lies within the testing fixture itself.

Why Probe Reliability Matters in Manufacturing

In high-volume production environments, even a single failing probe can affect hundreds or thousands of boards. Maintaining reliable electrical contact is essential for ensuring accurate testing results and preventing unnecessary production delays.

1. Contamination Is One of the Leading Causes of Probe Failure

How Flux, Dust, and Oxidation Affect Performance

Contamination is among the most common causes of ICT probe failure. During repeated testing cycles, solder flux residue, dust, oxidation, and other debris can accumulate on probe tips. This buildup creates an insulating layer that interferes with electrical contact and increases contact resistance.

As resistance increases, measurements become less reliable, often resulting in false failures or inconsistent readings.

Regular Cleaning Helps Maintain Reliable Contact

Routine cleaning can significantly improve probe performance and extend service life.

Common maintenance practices include:

• Removing loose debris with low-pressure compressed air
• Cleaning probe tips with isopropyl alcohol (IPA)
• Using lint-free swabs or brushes
• Inspecting probes during scheduled maintenance intervals

For facilities running continuous production, even small amounts of contamination can affect testing accuracy over time.

2. Incorrect Spring Force Can Reduce Contact Reliability

The Risks of Insufficient Contact Force

When spring force is too low, the probe may not establish consistent electrical contact with the test point. This can lead to intermittent signals, unstable measurements, and repeated test failures.

Excessive Force Can Accelerate Mechanical Wear

Excessive force can be equally problematic. Applying too much pressure increases stress on both the probe and PCB test points, accelerating wear and potentially damaging sensitive surfaces.

Selecting the Right Spring Contact Probes Matters

Different testing applications require different force ratings. Choosing appropriate spring contact probes helps maintain reliable contact while minimizing unnecessary mechanical stress throughout the testing cycle.

3. Can a Worn Receptacle Cause False Test Failures?

How Receptacle Wear Develops Over Time

Many engineers focus on the probe itself while overlooking the importance of the receptacle. Over thousands of testing cycles, receptacles experience repeated mechanical movement and electrical contact, which can gradually affect alignment and conductivity.

Early Warning Signs Engineers Should Not Ignore

Many testing issues that appear to be probe-related can actually be traced back to a worn or incompatible receptacle, making routine inspection essential.

4. Fixture Misalignment Often Goes Undetected Until Problems Appear

Small Alignment Errors Can Create Major Testing Issues

Fixture misalignment is a common but often overlooked cause of probe failure. Differences between CAD data, fixture drilling accuracy, and actual PCB dimensions can create slight offsets that affect probe positioning.

Over time, repeated side loading places stress on probes and receptacles, reducing their lifespan and increasing the likelihood of false failures.

Proper Fixture Design Reduces Mechanical Stress

Regular fixture calibration and alignment checks help ensure probes contact their intended test points consistently. Maintaining accurate alignment is particularly important for high-density PCB assemblies.

5. Using a Probe Beyond Its Intended Specifications Accelerates Wear

Why Application Mismatch Causes Problems

Even high-quality probes can fail prematurely when used outside their intended operating conditions. For example, a standard probe used in a power-testing environment may experience excessive heat and accelerated wear.

Common Examples of Incorrect Probe Usage

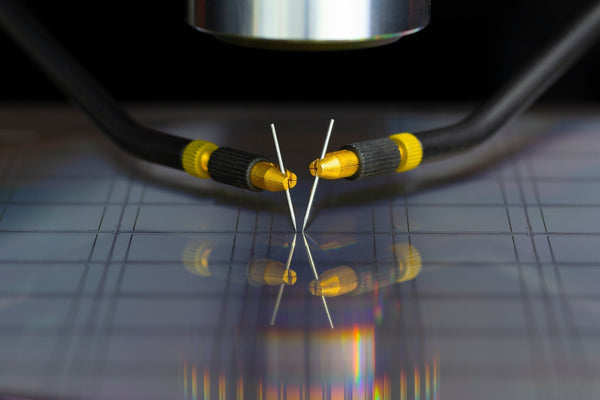

Engineers evaluating probe options can also refer to How to Choose the Right Probe for ICT, Functional Testing, and High-Current Applications for a deeper understanding of probe selection criteria.

Preventive Maintenance Plays a Critical Role in Probe Performance

Small Maintenance Tasks Prevent Larger Problems

Many probe failures can be avoided through proactive maintenance.

A simple maintenance routine should include:

✓ Cleaning probe tips regularly

✓ Inspecting probes for wear

✓ Checking receptacle condition

✓ Verifying fixture alignment

✓ Replacing worn probes before failure occurs

Calibration Helps Maintain Accuracy

Regular calibration verifies fixture alignment and measurement accuracy. Establishing a calibration schedule allows manufacturers to identify performance issues before they affect production quality.

Frequently Asked Questions About ICT Probe Failure

How often should ICT probes be replaced?

Replacement intervals vary based on testing volume, operating conditions, and probe design. Regular inspections help determine when replacement is necessary.

What causes ICT probes to fail prematurely?

The most common causes include contamination, mechanical wear, improper spring force, misalignment, receptacle damage, and inadequate maintenance.

Can a damaged receptacle affect testing accuracy?

Yes. A worn receptacle can increase contact resistance, affect alignment, and lead to inconsistent test results.

When should a high current probe be used?

A high current probe should be used in applications involving elevated current loads, such as battery testing, power electronics, and automotive systems.

How can spring contact probes last longer?

Regular cleaning, proper alignment, routine inspection, and timely replacement can significantly extend the lifespan of spring contact probes.

Improving ICT Probe Reliability Starts With a Proactive Approach

Improving test fixture reliability starts with understanding the factors that contribute to ICT probe failure. Contamination, wear, misalignment, board warpage, and poor maintenance practices can all affect testing accuracy and increase operational costs. By implementing preventive maintenance routines, following good DFT practices, and using quality testing components, manufacturers can reduce downtime and achieve more consistent results.
