Emergency Pushbutton Explained: Wiring, Contact Blocks and Safety

An emergency pushbutton is the one control on a machine that has to work when everything else has failed. It is also the single switch where wiring convention is not a matter of preference: get the contact block wrong and the machine keeps running at the exact moment it needs to stop. This guide explains what separates an emergency pushbutton from an ordinary switch, how the contact block does the real protecting, how to wire it to fail safe, and the safety standards a Singapore panel is expected to meet.

What Is an Emergency Pushbutton?

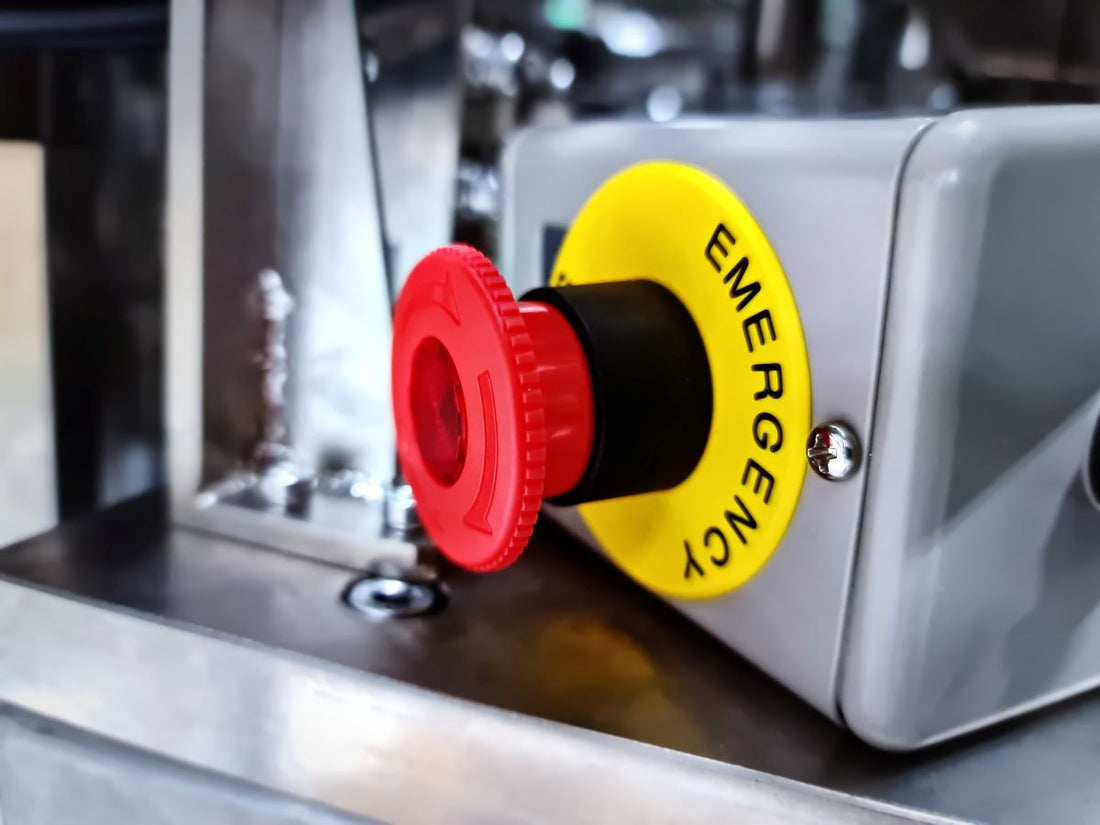

An emergency pushbutton, or E-stop, is a manually operated switch that immediately removes power to a hazard and stays latched in the off position until it is deliberately reset.

Four features make it an E-stop rather than just a red button. It has a mushroom, or palm, actuator so it can be hit fast without aiming. It latches, staying pressed once struck. It releases only on a deliberate twist, pull or key. And behind it sits a normally closed contact block that breaks the circuit. Remove any one of these and it is no longer a true emergency stop. Where an ordinary start button is a momentary switch that springs back on release, an emergency pushbutton is the opposite: it holds its state until a person decides otherwise.

Why an Emergency Pushbutton Must Latch

An E-stop uses a latching switch action for a safety reason, not for convenience. Once struck, it must stay in, so the hazard cannot restart the instant the operator's hand leaves the button. A momentary action here would be dangerous, because the machine could re-energise the moment the button popped back out.

The release is deliberate by design. Twisting, pulling or unlocking the actuator is a conscious act that no one performs by accident. But releasing the button is only half of the reset, and this is the principle that catches people out: reset must not restart. Releasing the emergency pushbutton only re-arms the circuit. It does not start the machine. A separate, intentional start action is always required afterward. The same command-versus-state logic runs through every button on a panel, which we cover in momentary vs latching switch.

The Contact Block Does the Protecting

The red actuator is what the operator hits. The contact block clipped in behind the panel is what actually breaks the circuit, and on an emergency pushbutton it must be normally closed (NC).

Why NC is non-negotiable comes down to what happens when something breaks. With a normally closed contact block, a cut wire, a loose terminal or a corroded contact opens the circuit in exactly the same way as pressing the button. The fault stops the machine instead of hiding inside it until the day the E-stop is needed. This is the same fail-safe logic behind stop circuits generally, explained further in our guide on how to specify the right pushbutton for your control panel.

An ordinary NC contact is not enough. A true E-stop needs positive opening, where the contacts are forced mechanically apart rather than relying on a spring. If a contact welds itself shut, positive opening physically drives it open. It is marked with an arrow-in-circle symbol, and it is the single feature that separates a genuine E-stop contact block from a lookalike. E-stops often carry two blocks: one to drop the safety circuit, and one to tell the PLC the stop was triggered, without trusting the PLC to perform the stop itself. Sisco stocks RAFI actuators and contact blocks and accessories for exactly this kind of stop circuit.

How to Wire an Emergency Pushbutton Safely

Multiple E-stops are wired in series, so pressing any single button anywhere on a machine drops the entire safety circuit. That NC loop runs into a safety relay, which watches for both a press and a fault and blocks restart until it sees a separate reset.

The reset itself is where a key switch earns its place, restricting re-arming to a supervisor who has checked the area is clear, not any passer-by.

Emergency Pushbutton Standards to Know

Two standards frame almost every emergency pushbutton decision. IEC 60947-5-5 governs the E-stop device itself, including the positive opening and latching requirements. ISO 13850 governs the emergency stop function at machine level, covering layout, colour and the reset-must-not-restart rule.

The colour convention is not optional: a red actuator on a yellow background, reserved exclusively for emergency stop so it can never be mistaken for an ordinary switch. In Singapore, machine builders supplying export customers and workplaces under WSH expectations are expected to reference these standards, and the correct device is what stands up at audit and handover.

Common Emergency Pushbutton Mistakes

• Using a plain NC button with no positive opening, so a welded contact leaves a dead E-stop.
• Routing the stop through the PLC instead of a hardwired safety circuit.
• A reset that restarts the machine instead of only re-arming it.
• Too few E-stops, or out of reach from a working position.
• Reusing the red actuator for a non-emergency function.

FAQs About Emergency Pushbuttons

Why must an emergency stop be normally closed?

So a broken wire or failed contact opens the circuit and stops the machine, rather than silently disabling the E-stop.

What is positive opening on an E-stop?

A mechanism that forces the contacts physically apart rather than relying on a spring, so even a welded contact is driven open.

Can I use a momentary switch as an emergency stop?

No. A momentary switch springs back and would let the machine restart the instant it is released. An E-stop must latch.

How many emergency pushbuttons does a machine need?

Enough that an operator can always reach one within a step from any working position. Large machines need several, wired in series.

Specify an Emergency Pushbutton That Fails Safe

The rule in one line: latching actuator, normally closed contact block, positive opening, and a deliberate reset. Miss any one and the device is an E-stop in appearance only.
