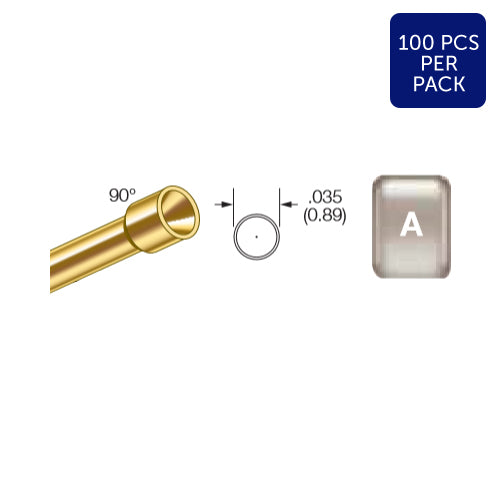

ICT-50J-A-7-DG Pogo Pin

Packing: 100pcs/pack

Probe Specifications:
Minimum Centers: .050 (1.27)
Current Rating: 3 amps continuous
Spring Force: 4.0, 5.6, 7.0 or 10.0 oz. @ .170 (4.32) travel
Typical Resistance: < 20 mΩ for ICT-50J < 25 mΩ for S-50J
Maximum Travel: .250 (6.35)
Working Travel: .170 (4.32)

Rated Force      Preload      Material
oz. (g)               oz. (g)
7.0 (198)           3.1 (88)       MW

Materials:
Barrel: Nickel/silver, gold-lined
Spring: Music wire, nickel-plated or stainless steel
Plunger: Beryllium copper or steel, gold plated over nickel
Receptacle: Beryllium copper, pre-plated gold, gold plated post
Terminal: Beryllium copper, pre-plated gold
