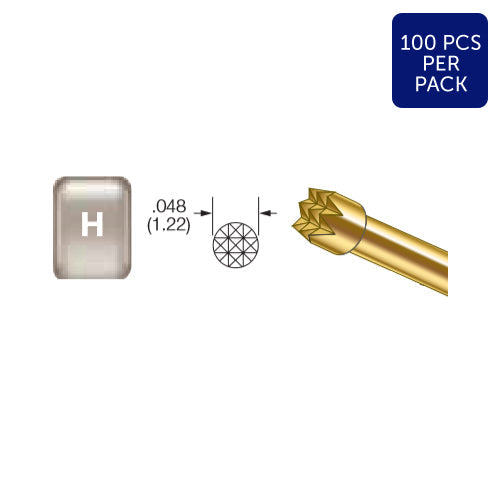

ICT-L075-H-4.3-G Pogo Pin

Packing: 100pcs/pack

Probe Specifications:
Minimum Centers: .075 (1.91)
Current Rating: 3 amps continuous
Spring Force: 4.3 oz. @ .317 (8.05) travel
Typical Resistance: < 15 mΩ
Maximum Travel: .400 (10.16)
Working Travel: .317 (8.05)

Rated Force     Preload
oz (g)                oz (g)
4.3 (122)           1.8 (51)

Materials:
Barrel: G2
Spring: Music wire, gold plated
Plunger: Beryllium copper or steel, gold plated over nickel
Receptacle: Nickel/silver, gold plated; gold plated post
