Sisco Interconnect

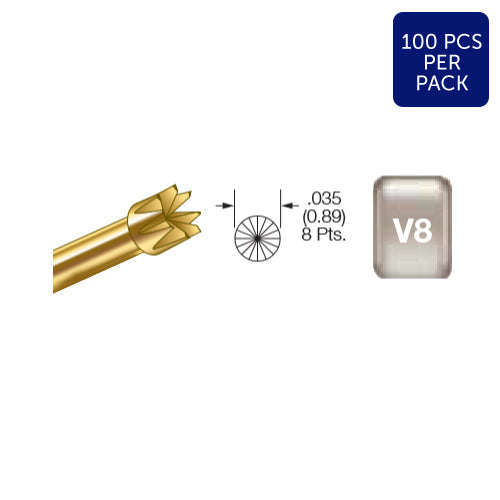

Obsolete S-50J-V8-10-DG Pogo Pin

Obsolete S-50J-V8-10-DG Pogo Pin

Regular price $8.00 USD
Regular price Sale price $8.00 USD
Sale Sold out
Shipping calculated at checkout.
Price per Piece
Minimum Order Quantity

Packing: 100pcs/pack


Probe Specifications:
Minimum Centers: .050 (1.27)
Current Rating: 3 amps continuous
Spring Force: 10.0 oz. @ .170 (4.32) travel
Typical Resistance: < 20 mΩ for ICT-50J < 25 mΩ for S-50J
Maximum Travel: .250 (6.35)
Working Travel: .170 (4.32)


Rated Force      Preload      Material
oz. (g)               oz. (g)
10.0 (284)         4.6 (130)        MW


Materials:
Barrel: Nickel/silver, gold-lined
Spring: Music wire, nickel-plated or stainless steel
Plunger: Beryllium copper or steel, gold plated over nickel
Receptacle: Beryllium copper, pre-plated gold, gold plated post
Terminal: Beryllium copper, pre-plated gold
