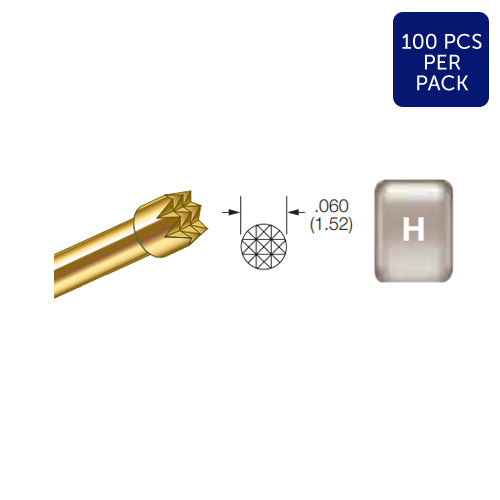

S-1-H-1-G Pogo Pin

Packing: 100 pcs per pack

Probe Specifications:
Minimum Centers: .075 (1.91)
Current Rating: 3 amps continuous
Spring Force: 1.0 oz. @ .070 (1.78) travel
Typical Resistance: < 25 mΩ
Maximum Travel: .100 (2.54)
Working Travel: .070 (1.78)

Rated Force      Preload       Material
oz. (g)                oz. (g)
1.0 (57)

Materials:
Barrel: Nickel/silver, gold plated
Spring: Stainless steel or music wire, gold plated
Plunger: Beryllium copper, gold plated over nickel or Duralloy™
Receptacle: Nickel/silver, gold plated, gold plated post
