Sisco Interconnect

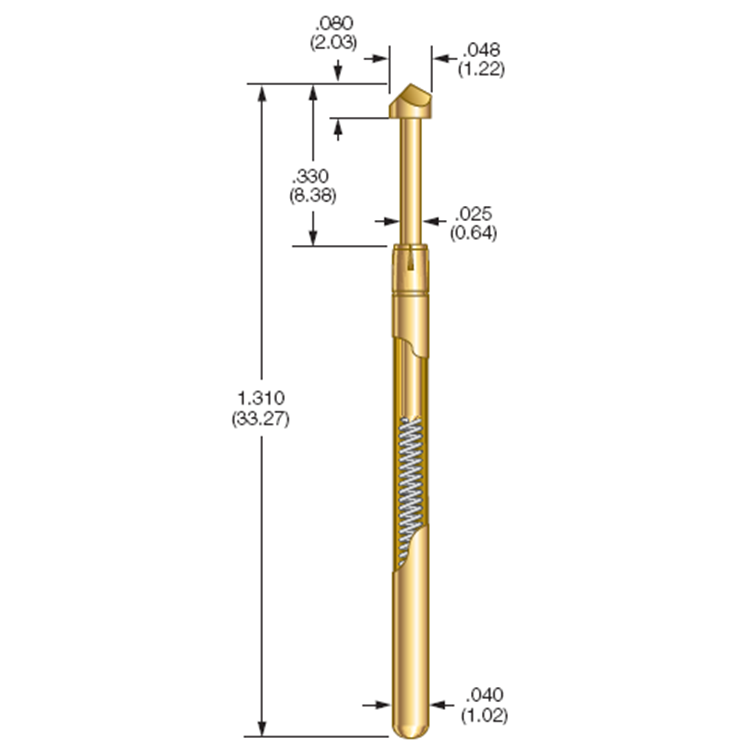

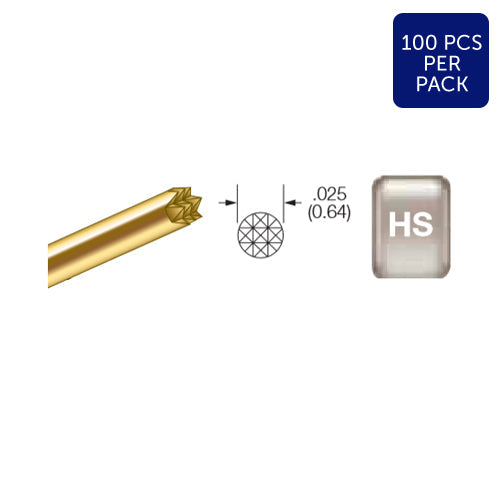

ICT-075-HS-7-G Pogo Pin
ICT-075-HS-7-G Pogo Pin
Regular price
$158.00 USD
Regular price
Sale price
$158.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Packing: 100pcs/pack
Probe Specification
Minimum Centers: .075 (1.91)
Current Rating: 3 amps continuous
Spring Force: 7.0 @ .170 (4.32) travel
Typical Resistance: < 25 mΩ
Maximum Travel: .250 (6.35)
Working Travel: .170 (4.32)
Probe Specification
Minimum Centers: .075 (1.91)
Current Rating: 3 amps continuous
Spring Force: 7.0 @ .170 (4.32) travel
Typical Resistance: < 25 mΩ
Maximum Travel: .250 (6.35)
Working Travel: .170 (4.32)
Rated Force Preload
oz. (g) oz. (g
7.0 (198) 2.9 (82)
Materials
Barrel: G2
Plunger: BeCu, gold plated
