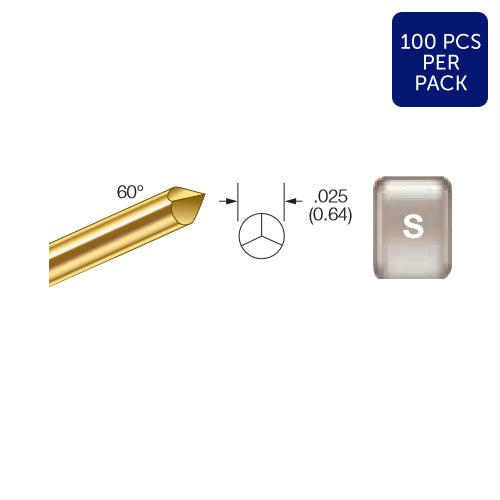

ICT-075-S-10-G-S Pogo Pin

ICT-075-S-10-G-S Pogo Pin is a spring-loaded contact probe (pogo pin) for .075" minimum centres, rated 3 A continuous with 10.0 oz spring force and .250" maximum travel. The high 10 oz spring force helps break through flux residue and oxidation on test pads, while the long .250" stroke tolerates board warpage in ICT fixtures. Pair it with the matching receptacle so worn probes can be swapped without rewiring the fixture.

Packing: 100 pcs per pack

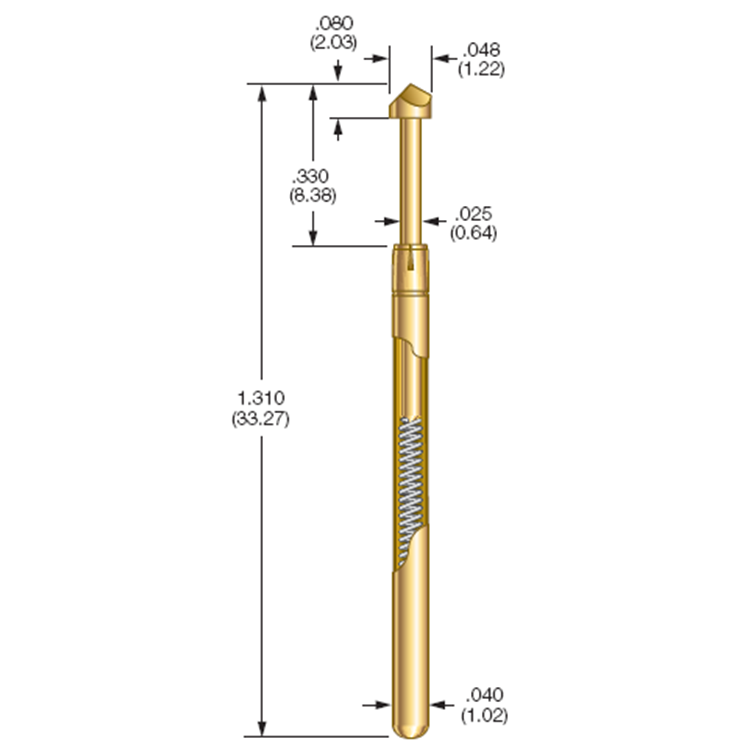

Probe Specification
Minimum Centers: .075 (1.91)
Current Rating: 3 amps continuous
Spring Force: 10.0 oz. @ .170 (4.32) travel
Typical Resistance: < 25 mΩ
Maximum Travel: .250 (6.35)
Working Travel: .170 (4.32)

Rated Force     Preload
oz. (g)               oz. (g
10.0 (283)         3.3 (94)

Materials
Barrel: G2
Spring: Music wire, nickel-plated
Plunger: Beryllium copper or steel, gold plated over nickel
Receptacle: Nickel/silver, gold plated; gold plated post
