ICT-075-U-10-G-S Pogo Pin

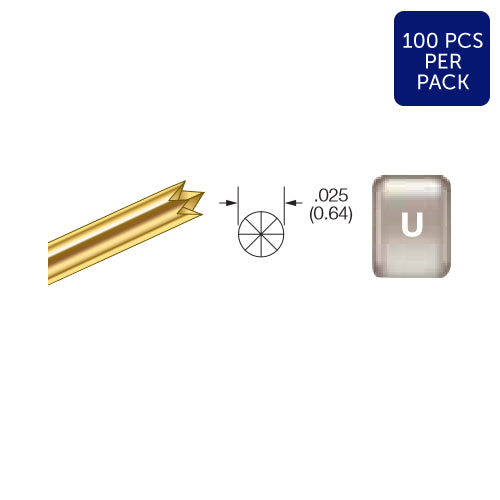

Packing: 100 pcs per pack

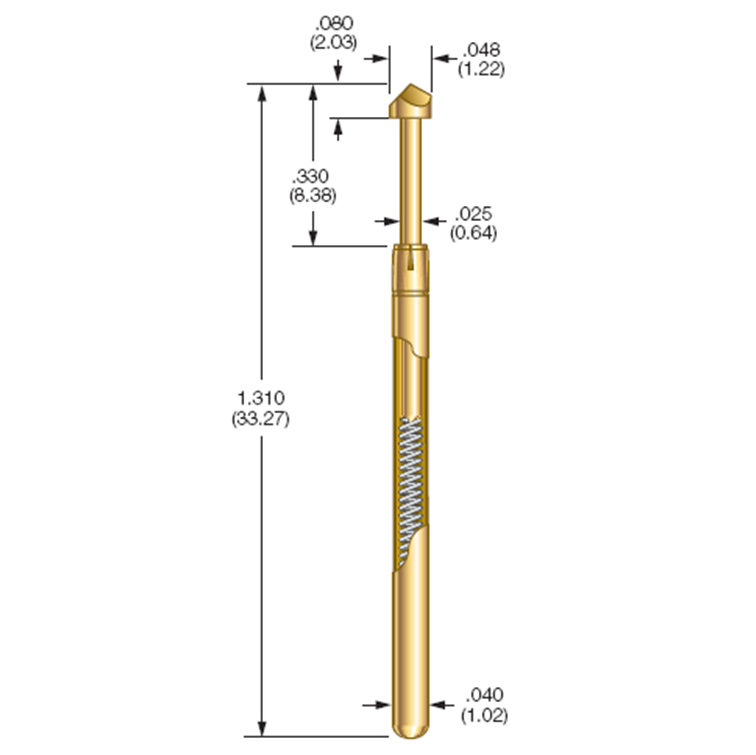

Probe Specification
Minimum Centers: .075 (1.91)
Current Rating: 3 amps continuous
Spring Force: 10.0 oz. @ .170 (4.32) travel
Typical Resistance: < 25 mΩ
Maximum Travel: .250 (6.35)
Working Travel: .170 (4.32)

Rated Force     Preload
oz. (g)               oz. (g
10.0 (283)         3.3 (94)

Materials
Barrel: G2
Spring: Music wire, nickel-plated
Plunger: Beryllium copper or steel, gold plated over nickel
Receptacle: Nickel/silver, gold plated; gold plated post
