ICT-50C-B-5.6-DG-S Pogo Pin
ICT-50C-B-5.6-DG-S Pogo Pin
Regular price
$247.00 USD
Regular price
Sale price
$247.00 USD
Unit price
/
per
Packing: 100 pcs per pack

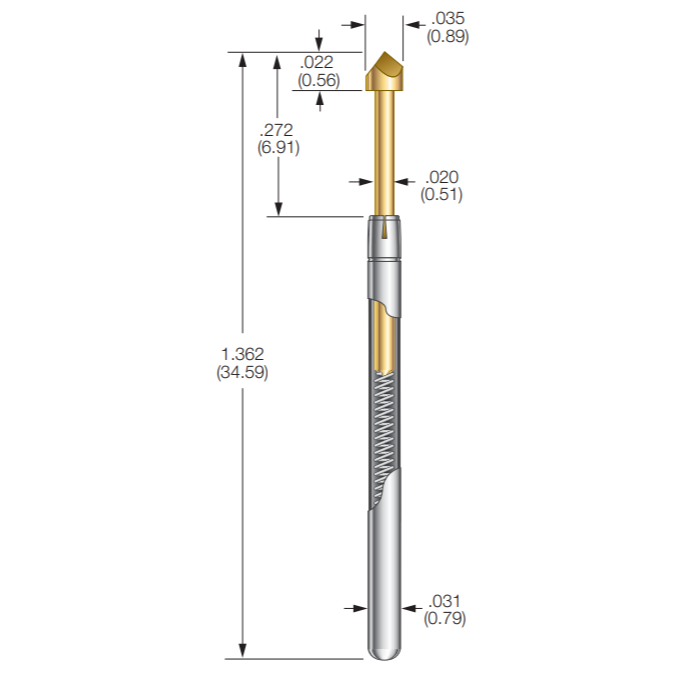

Probe Specifications:
Minimum Centers: .050 (1.27)
Current Rating: 3 amps continuous
Spring Force: 4.3 or 5.6 oz. @ .170 (4.32) travel
Typical Resistance: < 20 mΩ for ICT-50C < 25 mΩ for S-50C
Maximum Travel: .250 (6.35)
Working Travel: .170 (4.32)
oz. (g) oz. (g)
5.6 (159) 2.1 (60) MW
Materials:
Barrel: Nickel/silver, gold-lined
Spring: Music wire, nickel-plated or stainless steel
Plunger: Beryllium copper or steel, gold plated over nickel
Receptacle: Beryllium copper, pre-plated gold, gold plated post
Terminal: Beryllium copper, pre-plated gold
Plating Options:
DG: BeCu Plunger
DG-S: Steel Plunger
G: Gold Plated Plunger
Series:
ICT: High Performance
S: Standard Performance ( No Bifurcated Beam)
