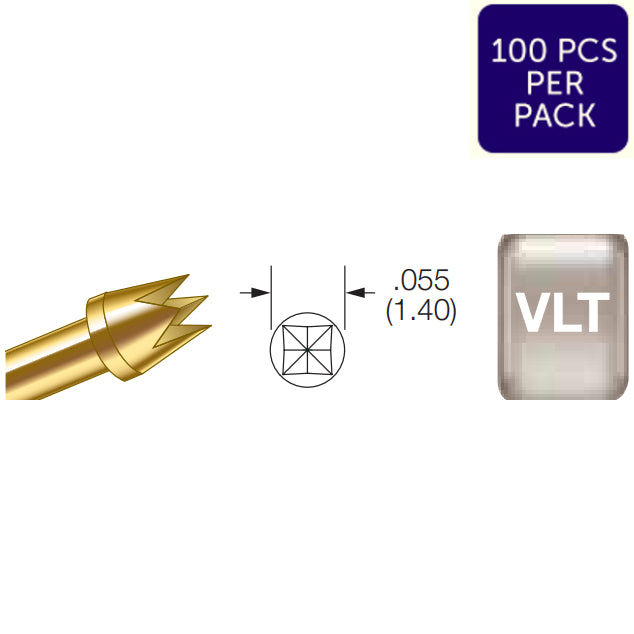

Obsolete S-100-VLT-3.5-G-S Pogo Pin

Packing: 100 pcs per pack

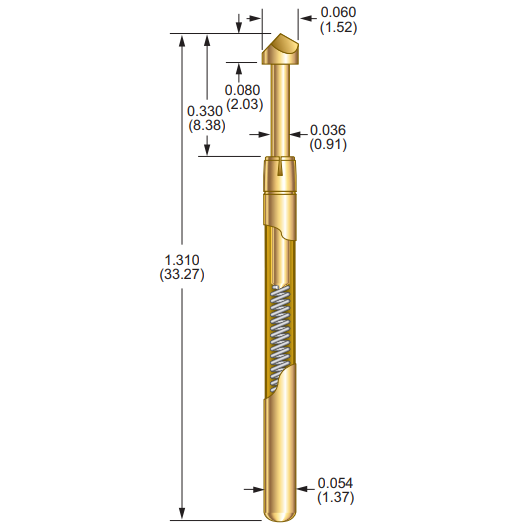

Probes Specifications
Minimum Centers: .100 (2.54)
Current Rating: 3 amps continuous
Spring Force: 3.5 oz. @.170 (4.32) travel
Typical Resistance: < 8 mΩ
Maximum Travel: .250 (6.35)
Working Travel: .170 (4.32)

Rated Force    Preload     Material
oz (g)               oz (g)
3.5 (227)          1.5 (94)       BECU*

Materials
Barrel: G2
Spring: Beryllium copper, music wire, nickel-plated or stainless steel
Plunger: Beryllium copper or steel, gold plated over nickel
Receptacle: Nickel/silver, gold plated; gold plated post
