S-0-A-2.2-D Pogo Pin
S-0-A-2.2-D Pogo Pin
Regular price
$121.00 USD
Regular price
Sale price
$121.00 USD
Unit price
/
per
Packing: 100 pcs per pack

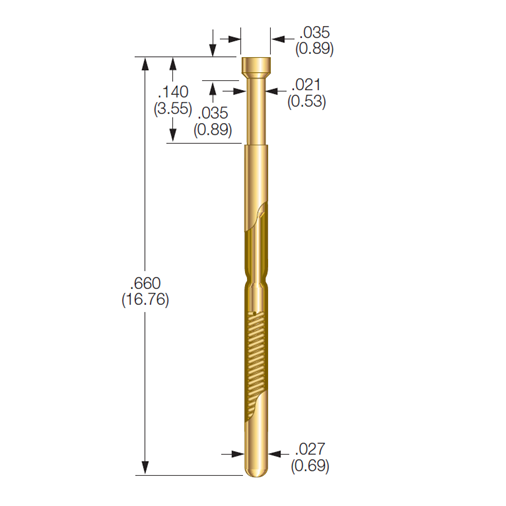

Probe Specifications
Minimum Centers: .050 (1.27)
Current Rating: 3 amps continuous
Spring Force: 2.2oz. @ .070 (1.78) travel
Typical Resistance: < 35 mΩ
Maximum Travel: .100 (2.54)
Working Travel: .070 (1.78)
Rated Force Preload Material
oz. (g) oz. (g)
2.2 (62) 0.6 (17) BeCu
Materials:
Barrel: Nickel/silver, gold plated
Spring: Beryllium copper, music wire or stainless steel, gold plated
Plunger: Beryllium copper, gold plated over nickel or Duralloy™
Receptacle: Nickel/silver, gold plated, gold plated post
Plug-In Terminal: Beryllium copper, pre-plated gold
