Sisco Interconnect

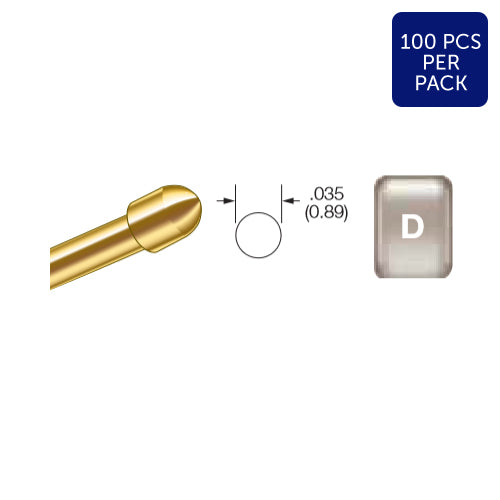

S-0-D-2.5-G Pogo Pin

S-0-D-2.5-G Pogo Pin

Regular price $121.00 USD
Regular price Sale price $121.00 USD
Sale Sold out
Shipping calculated at checkout.
Price per Piece
Minimum Order Quantity

Packing: 100 pcs per pack

Probe Specifications
Minimum Centers: .050 (1.27)
Current Rating: 3 amps continuous
Spring Force: 2.5 oz. @ .070 (1.78) travel
Typical Resistance: < 35 mΩ
Maximum Travel: .100 (2.54)
Working Travel: .070 (1.78)


Rated Force      Preload      Material
oz. (g)               oz. (g)
2.5 (71)             0.6 (17)      SS

Materials:
Barrel: Nickel/silver, gold plated
Spring: Beryllium copper, music wire or stainless steel, gold plated
Plunger: Beryllium copper, gold plated over nickel or Duralloy™
Receptacle: Nickel/silver, gold plated, gold plated post
Plug-In Terminal: Beryllium copper, pre-plated gold
