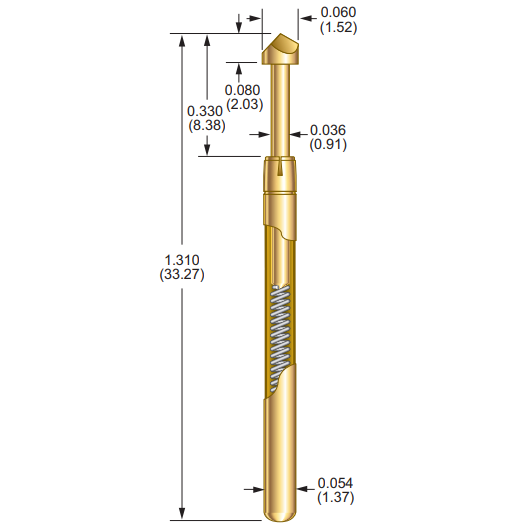

S-100-W-8-G Pogo Pin
S-100-W-8-G Pogo Pin
Regular price
$125.00 USD
Regular price
Sale price
$125.00 USD
Unit price
/
per
Probes Specifications
Minimum Centers: .100 (2.54)
Current Rating: 3 amps continuous
Spring Force: 8.0 oz. @.170 (4.32) travel
Typical Resistance: < 8 mΩ
Maximum Travel: .250 (6.35)
Working Travel: .170 (4.32)
Rated Force Preload Material
oz (g) oz (g)
8.0 (227) 3.3 (94) MW**
Materials
Barrel: G2
Spring: Beryllium copper, music wire, nickel-plated or stainless steel
Plunger: Beryllium copper or steel, gold plated over nickel
Receptacle: Nickel/silver, gold plated; gold plated post
