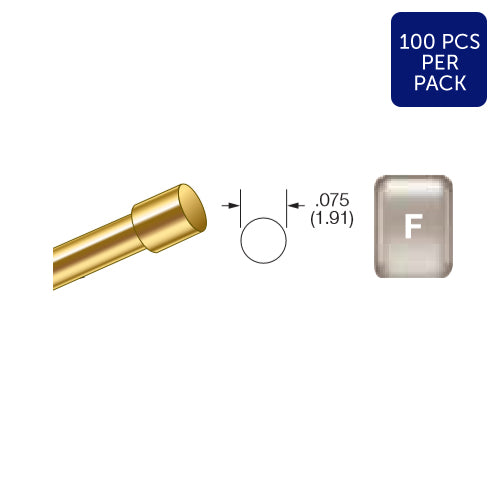

S-2-F-8.3-D Pogo Pin
S-2-F-8.3-D Pogo Pin
Regular price
$100.00 USD
Regular price
Sale price
$100.00 USD
Unit price
/
per
Packing: 100pcs per pack

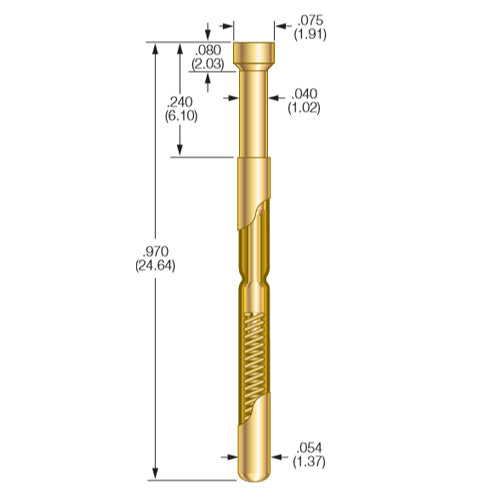

Probe Specifications:
Minimum Centers: .100 (2.54)
Current Rating: 3 amps continuous
Spring Force: 8.3 oz. @ .100 (2.54) travel
Typical Resistance: < 35 mΩ
Maximum Travel: .160 (4.06)
Working Travel: .100 (2.54)
Rated Force Preload Material
oz (g) oz (g)
8.3 (235) 3.3 (93) MW
Materials:
Barrel: Nickel/silver, gold plated
Spring: Beryllium copper, precious metal-plated, music wire or
stainless steel, gold plated
Plunger: Beryllium copper, gold plated over nickel or Duralloy™
Receptacle: Nickel/silver, gold plated; gold plated post
