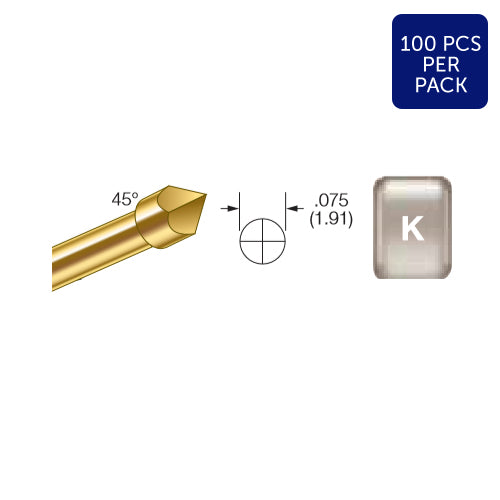

S-2-K-7-G Pogo Pin

S-2-K-7-G Pogo Pin is a spring-loaded contact probe (pogo pin) for .100" minimum centres, rated 3 A continuous with 7.0 oz spring force and .160" maximum travel. The standard .100" (100 mil) pitch and medium 7 oz force make it a versatile general-purpose probe for ICT and functional test fixtures. Pair it with the matching receptacle so worn probes can be swapped without rewiring the fixture.

Packing: 100pcs per pack

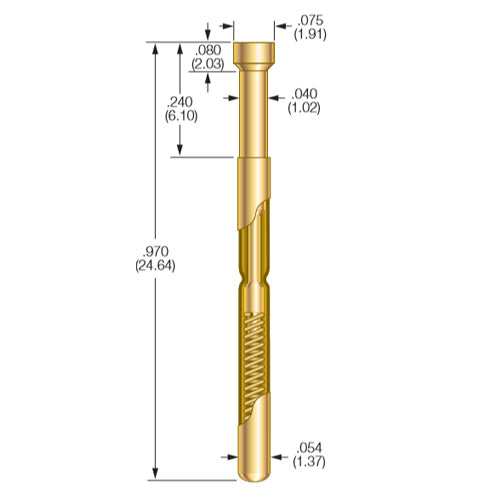

Probe Specifications:
Minimum Centers: .100 (2.54)
Current Rating: 3 amps continuous
Spring Force: 7.0 oz. @ .100 (2.54) travel
Typical Resistance: < 35 mΩ
Maximum Travel: .160 (4.06)
Working Travel: .100 (2.54)

Rated Force      Preload      Material
oz (g)                oz (g)
7.0 (198)          2.9 (82)       SS

Materials:
Barrel: Nickel/silver, gold plated
Spring: Beryllium copper, precious metal-plated, music wire or
             stainless steel, gold plated
Plunger: Beryllium copper, gold plated over nickel or Duralloy™
Receptacle: Nickel/silver, gold plated; gold plated post
