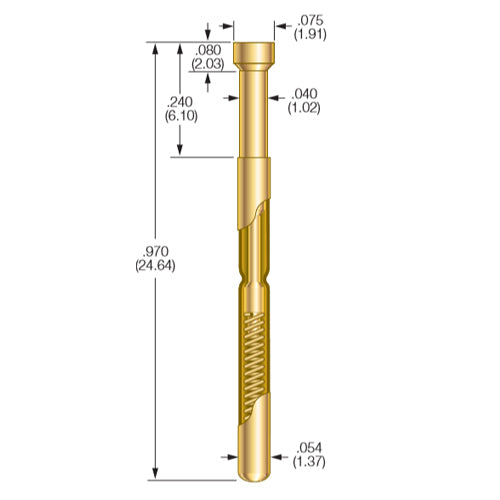

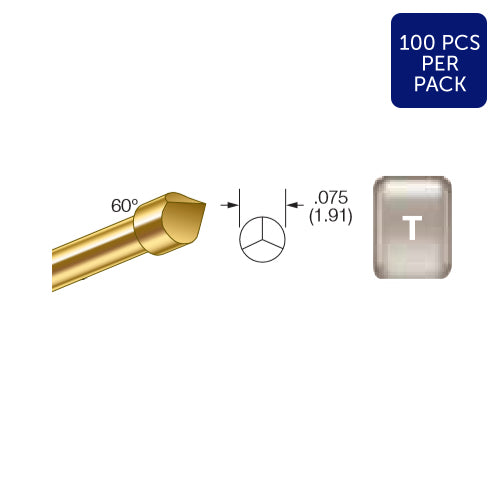

S-2-T-8.3-G Pogo Pin

Packing: 100pcs per pack

Probe Specifications:
Minimum Centers: .100 (2.54)
Current Rating: 3 amps continuous
Spring Force: 4.0, 7.0, 8.3 or 10.0 oz. @ .100 (2.54) travel
Typical Resistance: < 35 mΩ
Maximum Travel: .160 (4.06)
Working Travel: .100 (2.54)

Rated Force      Preload      Material
oz (g)                oz (g)
8.3 (235)          3.3 (93)       MW

Materials:
Barrel: Nickel/silver, gold plated
Spring: Beryllium copper, precious metal-plated, music wire or
             stainless steel, gold plated
Plunger: Beryllium copper, gold plated over nickel or Duralloy™
Receptacle: Nickel/silver, gold plated; gold plated post
