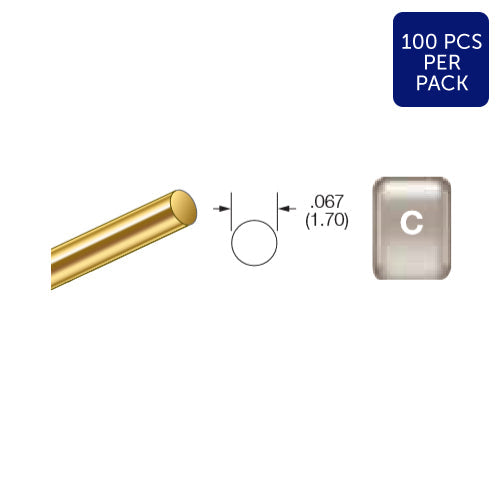

S-3-C-4-G Pogo Pin

Packing: 100 pcs per pack

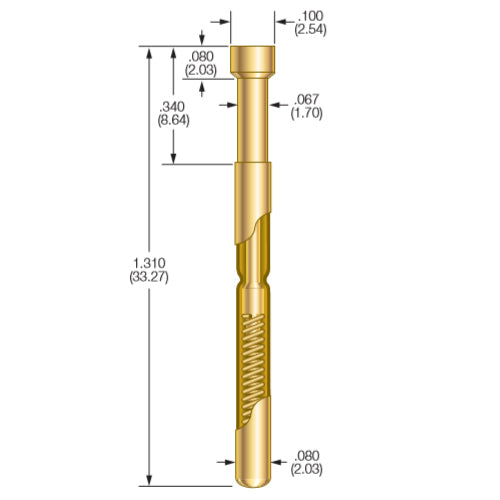

Probe Specifications:
Minimum Centers: .125 (3.18)
Current Rating: 5 amps continuous
Spring Force: 4.0 oz. @ .170 (4.32) travel
Typical Resistance: < 20 mΩ
Maximum Travel: .250 (6.35)
Working Travel: .170 (4.32)

Rated Force        Preload
oz (g)                  oz (g)
4.0 (113)             1.8 (51)

Materials:
Barrel: Nickel/silver, gold plated
Spring: Stainless steel, gold plated
Plunger: Beryllium copper, gold plated over nickel or Duralloy™
Receptacle: Nickel/silver, gold plated, gold plated post
