S-4-A-5-G Pogo Pin

Packing: 100 pcs per pack

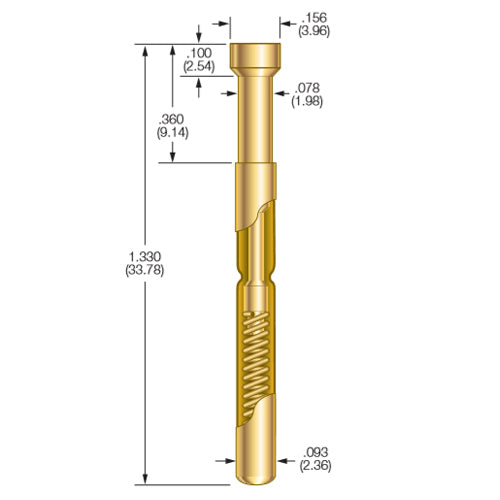

Probe Specifications:

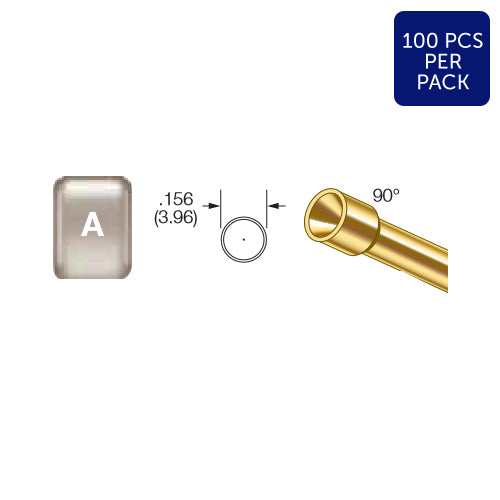

Minimum Centers: Tip Styles B, C, D, G, J, K .156 (3.96)
Tip Styles A, E, F, H .187 (4.75)
Current Rating: 5 amps continuous
Spring Force: 5.0 oz. @ .170 (4.32) travel
Typical Resistance: < 20 mΩ
Maximum Travel: .250 (6.35)
Working Travel: .170 (4.32)

Rated Force     Preload
oz (g)               oz (g)
5.0 (142)          2.0 (57)

Materials:
Barrel: Nickel/silver, gold plated
Spring: Stainless steel, gold plated
Plunger: Beryllium copper, gold plated over nickel or Duralloy™
Receptacle: Nickel/silver, gold plated, gold plated post
