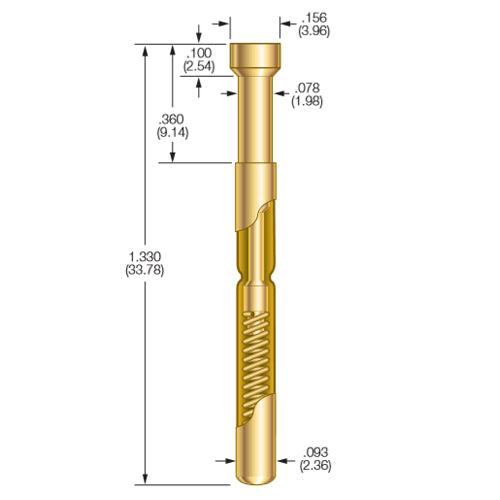

S-4-J-7-D Pogo Pin

Packing: 100 pcs per pack

Probe Specifications:
Minimum Centers: Tip Styles B, C, D, G, J, K .156 (3.96)
Tip Styles A, E, F, H .187 (4.75)
Current Rating: 5 amps continuous
Spring Force: 7.0 oz. @ .170 (4.32) travel
Typical Resistance: < 20 mΩ
Maximum Travel: .250 (6.35)
Working Travel: .170 (4.32)

Rated Force     Preload
oz (g)               oz (g)
7.0 (198)          2.8 (79)

Materials:
Barrel: Nickel/silver, gold plated
Spring: Stainless steel, gold plated
Plunger: Beryllium copper, gold plated over nickel or Duralloy™
Receptacle: Nickel/silver, gold plated, gold plated post
