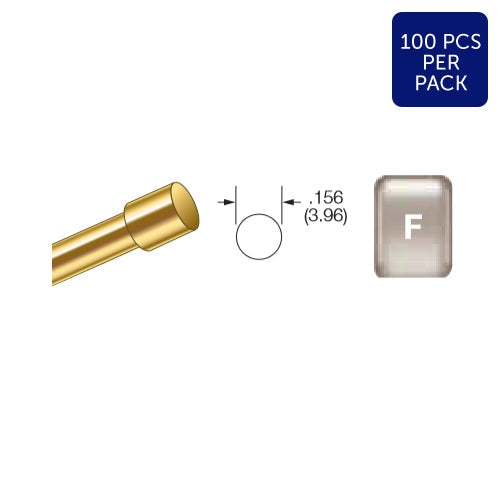

S-5-F-16.4-G Pogo Pin

S-5-F-16.4-G Pogo Pin is a spring-loaded contact probe (pogo pin) for .187" minimum centres, rated 5 A continuous with 16.4 oz spring force. The large .187" body, 5 A rating and very high 16.4 oz spring force make it suited to heavy-duty, high-current and connector test points. Pair it with the matching receptacle so worn probes can be swapped without rewiring the fixture.

Packing: 100 pcs per pack

Probe Specifications:
Minimum Centers: .187 (4.75) .275 (6.99) for HLF tip style
Current Rating: 5 amps continuous
Spring Force: 16.4 oz. @ .170 (4.32) travel
Typical Resistance: < 8 mΩ
Maximum Travel: .250 (6.35)
Working Travel: .170 (4.32)

Rated Force       Preload       Material
oz (g)                  oz (g)
16.4 (465)           2.8 (79)        MW

Materials:
Barrel: Nickel/silver, gold plated
Spring: Music wire or stainless steel
Plunger: Beryllium copper, gold plated over nickel or Duralloy™
Receptacle: Nickel/silver, gold plated, gold plated post
