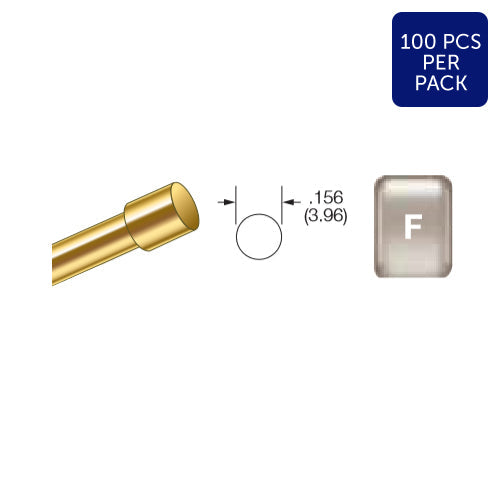

S-5-F-8-G Pogo Pin

Packing: 100 pcs per pack

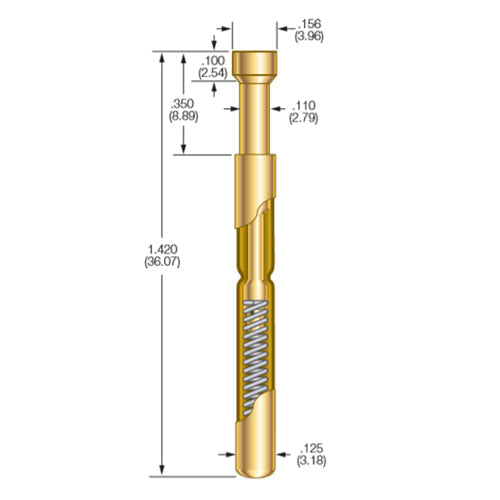

Probe Specifications:
Minimum Centers: .187 (4.75) .275 (6.99) for HLF tip style
Current Rating: 5 amps continuous
Spring Force: 8.0 oz. @ .170 (4.32) travel
Typical Resistance: < 8 mΩ
Maximum Travel: .250 (6.35)
Working Travel: .170 (4.32)

Rated Force       Preload       Material
oz (g)                  oz (g)
8.0 (227)             3.1 (88)        SS

Materials:
Barrel: Nickel/silver, gold plated
Spring: Music wire or stainless steel
Plunger: Beryllium copper, gold plated over nickel or Duralloy™
Receptacle: Nickel/silver, gold plated, gold plated post
