Sisco Interconnect
ICT-075-UR-10-G Pogo Pin
ICT-075-UR-10-G Pogo Pin
Regular price
$216.00 SGD
Regular price
Sale price
$216.00 SGD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Packing: 100pcs/pack

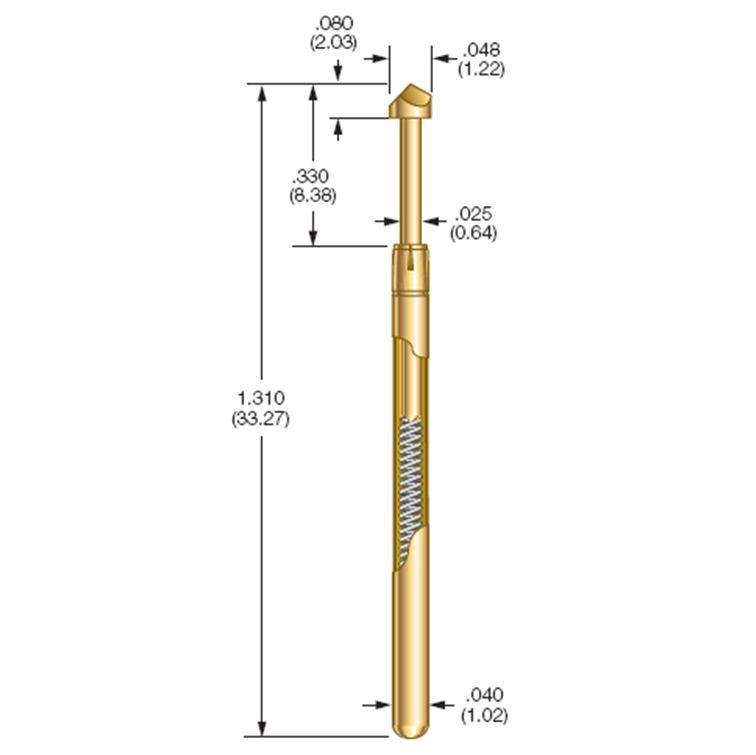

Probe Specification
Minimum Centers: .075 (1.91)
Current Rating: 3 amps continuous
Spring Force: 10.0 oz. @ .170 (4.32) travel
Typical Resistance: < 25 mΩ
Maximum Travel: .250 (6.35)
Working Travel: .170 (4.32)
Probe Specification
Minimum Centers: .075 (1.91)
Current Rating: 3 amps continuous
Spring Force: 10.0 oz. @ .170 (4.32) travel
Typical Resistance: < 25 mΩ
Maximum Travel: .250 (6.35)
Working Travel: .170 (4.32)
Rated Force Preload
oz. (g) oz. (g
10.0 (283) 3.3 (94)
Barrel: G2
Spring: Music wire, nickel-plated
Plunger: Beryllium copper or steel, gold plated over nickel
Receptacle: Nickel/silver, gold plated; gold plated post
