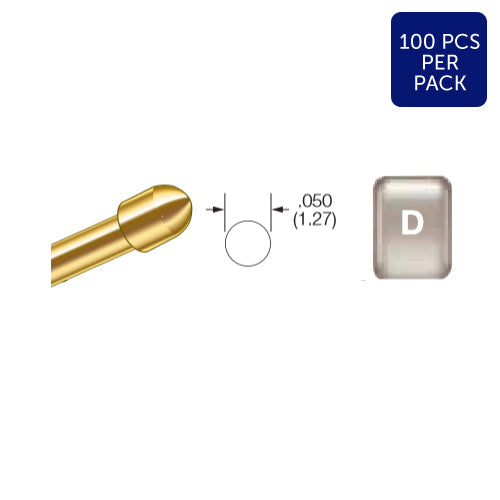

ICT-100-D-5.5-G Pogo Pin

ICT-100-D-5.5-G Pogo Pin is a spring-loaded contact probe (pogo pin) for .100" minimum centres, rated 3 A continuous with 5.5 oz spring force. The moderate 5.5 oz force on a standard .100" grid balances reliable contact with low pad wear, suiting high-cycle ICT fixtures. Pair it with the matching receptacle so worn probes can be swapped without rewiring the fixture.

Packing: 100 pcs per pack

Probes Specifications
Minimum Centers: .100 (2.54)
Current Rating: 3 amps continuous
Spring Force: 5.5 oz. @.170 (4.32) travel
Typical Resistance: < 8 mΩ
Maximum Travel: .250 (6.35)
Working Travel: .170 (4.32)

Rated Force    Preload     Material
oz (g)               oz (g)
5.5 (156)          2.4 (68)       MW**

Materials
Barrel: G2
Spring: Beryllium copper, music wire, nickel-plated or stainless steel
Plunger: Beryllium copper or steel, gold plated over nickel
Receptacle: Nickel/silver, gold plated; gold plated post
