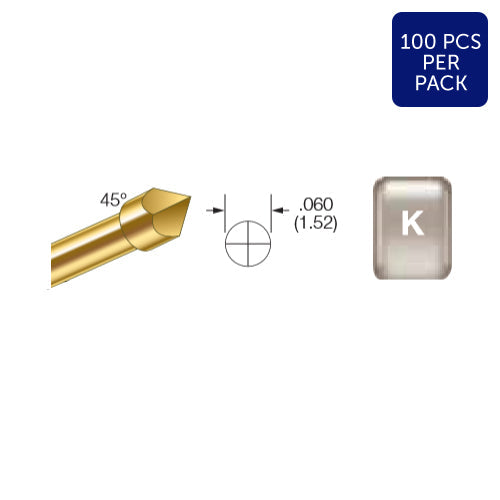

ICT-100-K-10-G Pogo Pin

ICT-100-K-10-G Pogo Pin is a spring-loaded contact probe (pogo pin) for .100" minimum centres, rated 3 A continuous with 10.0 oz spring force. A firm 10 oz spring force on the standard .100" grid gives dependable contact on fixtures where pads may carry flux residue or oxidation. Pair it with the matching receptacle so worn probes can be swapped without rewiring the fixture.

Packing: 100 pcs per pack

Probes Specifications
Minimum Centers: .100 (2.54)
Current Rating: 3 amps continuous
Spring Force: 10.0 oz. @.170 (4.32) travel
Typical Resistance: < 8 mΩ
Maximum Travel: .250 (6.35)
Working Travel: .170 (4.32)

Rated Force    Preload     Material
oz (g)               oz (g)
10.0 (283)        3.7 (105)     MW

Materials
Barrel: G2
Spring: Beryllium copper, music wire, nickel-plated or stainless steel
Plunger: Beryllium copper or steel, gold plated over nickel
Receptacle: Nickel/silver, gold plated; gold plated post
