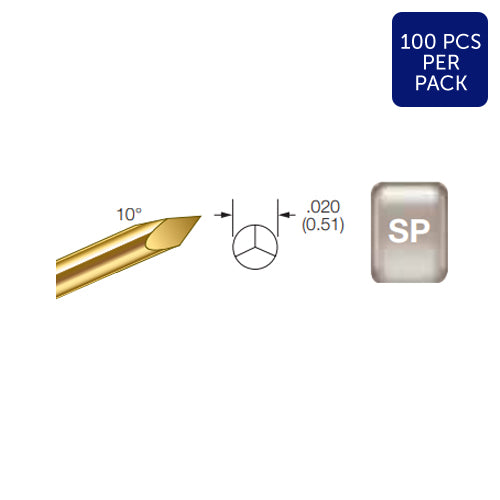

ICT-50C-SP-5.6-DG-S Pogo Pin

Packing: 100 pcs per pack

Probe Specifications:
Minimum Centers: .050 (1.27)
Current Rating: 3 amps continuous
Spring Force: 4.3 or 5.6 oz. @ .170 (4.32) travel
Typical Resistance: < 20 mΩ for ICT-50C < 25 mΩ for S-50C
Maximum Travel: .250 (6.35)
Working Travel: .170 (4.32)

Rated Force     Preload      Material
oz. (g)              oz. (g)
5.6 (159)          2.1 (60)       MW

Materials:
Barrel: Nickel/silver, gold-lined
Spring: Music wire, nickel-plated or stainless steel
Plunger: Beryllium copper or steel, gold plated over nickel
Receptacle: Beryllium copper, pre-plated gold, gold plated post
Terminal: Beryllium copper, pre-plated gold

Plating Options:
DG: BeCu Plunger
DG-S: Steel Plunger
G: Gold Plated Plunger

Series:
ICT: High Performance
S: Standard Performance ( No Bifurcated Beam)
